Mac Pro (2006 – 2009)

Mac Pro (March 2009) with Apple LED Cinema Display
Mac Pro (March 2009) with Apple LED Cinema Display

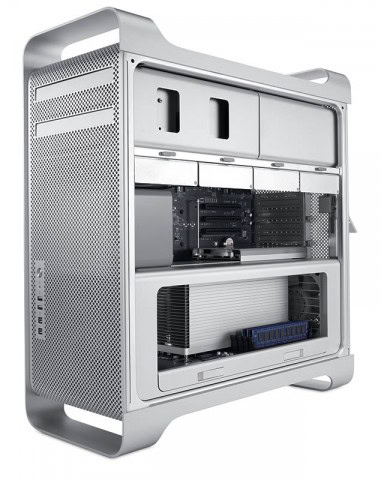

Mac Pro (March 2009)
Mac Pro (March 2009)

Specifications

Component Intel Xeon (based on Core microarchitecture) Intel Xeon (based on Nehalem microarchitecture)
Model Mac Pro[21] Mac Pro (Early 2008)[22] Mac Pro (Early 2009)[23]
Chipset Intel 5000X Intel 5400 Intel Nehalem-based server chipset
Graphics
Expandable to four graphics cards
nVidia GeForce 7300 GT with 256MB of GDDR3 SDRAM (single-link and dual-link DVI ports)

Optional ATI Radeon X1900 XT with 512MB GDDR3 SDRAM (two dual-link DVI ports) or nVidia Quadro FX 4500 with 512MB GDDR3 SDRAM (stereo 3D and two dual-link DVI ports)

ATI Radeon HD 2600 XT with 256MB of GDDR3 SDRAM (two dual-link DVI ports)
Optional nVidia GeForce 8800 GT with 512MB GDDR3 SDRAM (two dual-link DVI ports) or nVidia Quadro FX 5600 1.5GB (stereo 3D, two dual-link DVI ports)
nVidia GeForce GT 120 with 512MB of GDDR3 SDRAM (one mini-DisplayPort and one dual-link DVI port)
Optional ATI Radeon HD 4870 with 512MB of GDDR5 SDRAM (one Mini DisplayPort and one dual-link DVI port)
Hard drive

7200-rpm unless specified

250GB Serial ATA with 8MB cache
Optional 500GB with 8MB cache or 750GB with 16MB cache
320GB Serial ATA with 8MB cache
Optional 500GB, 750GB, or 1TB Serial ATA with 16MB cache or 300GB Serial Attached SCSI, 15,000-rpm with 16MB cache
640GB Serial ATA with 16MB cache
Optional 1TB Serial ATA with 16MB cache
Processor Two 2.66GHz Dual-core Intel Xeon Woodcrest
Optional 2.0GHz, 2.66GHz or 3.0GHz Dual-core or 3.0GHz Quad-core
Two 2.8GHz Quad-Core Intel Xeon Harpertown
Optional two 3.0GHz or 3.2GHz Quad-core processors or one 2.8GHz Quad-core processor
One 2.66GHz Quad-Core Intel Xeon 3500 or two 2.26GHz Quad-core Intel Xeon 5500 with 8MB of L3 cache

Optional 2.93GHz Quad-core Intel Xeon 3500 processor or two 2.66GHz or 2.93GHz Quad-core Intel Xeon 5500 processors

Memory 1GB (two 512MB) of 667MHz DDR2 ECC fully buffered DIMM
Expandable to 16GB
2GB (two 1GB) of 800MHz DDR2 ECC fully buffered DIMM
Expandable to 32GB
3GB (three 1GB) or 6GB (three 2GB) of 1066MHz DDR3 ECC DIMM
Expandable to 8GB on Quad-core model, and 32GB in 8-core models
AirPort Extreme Optional 802.11a/b/g and draft-n (n disabled by default) Optional 802.11a/b/g and draft-n (n-enabled)
Optical drive 16x SuperDrive with double-layer support (DVD+R DL/DVD±RW/CD-RW) 18x SuperDrive with double-layer support (DVD+R DL/DVD±RW/CD-RW)

Photos: Apple

Specifications
Source: Article “Mac Pro” (2009, March 8). In Wikipedia, The Free Encyclopedia. Retrieved 20:21, March 9, 2009, from http://en.wikipedia.org/w/index.php?title=Mac_Pro&oldid=275861403

This entry is published under the GNU General Public License.
